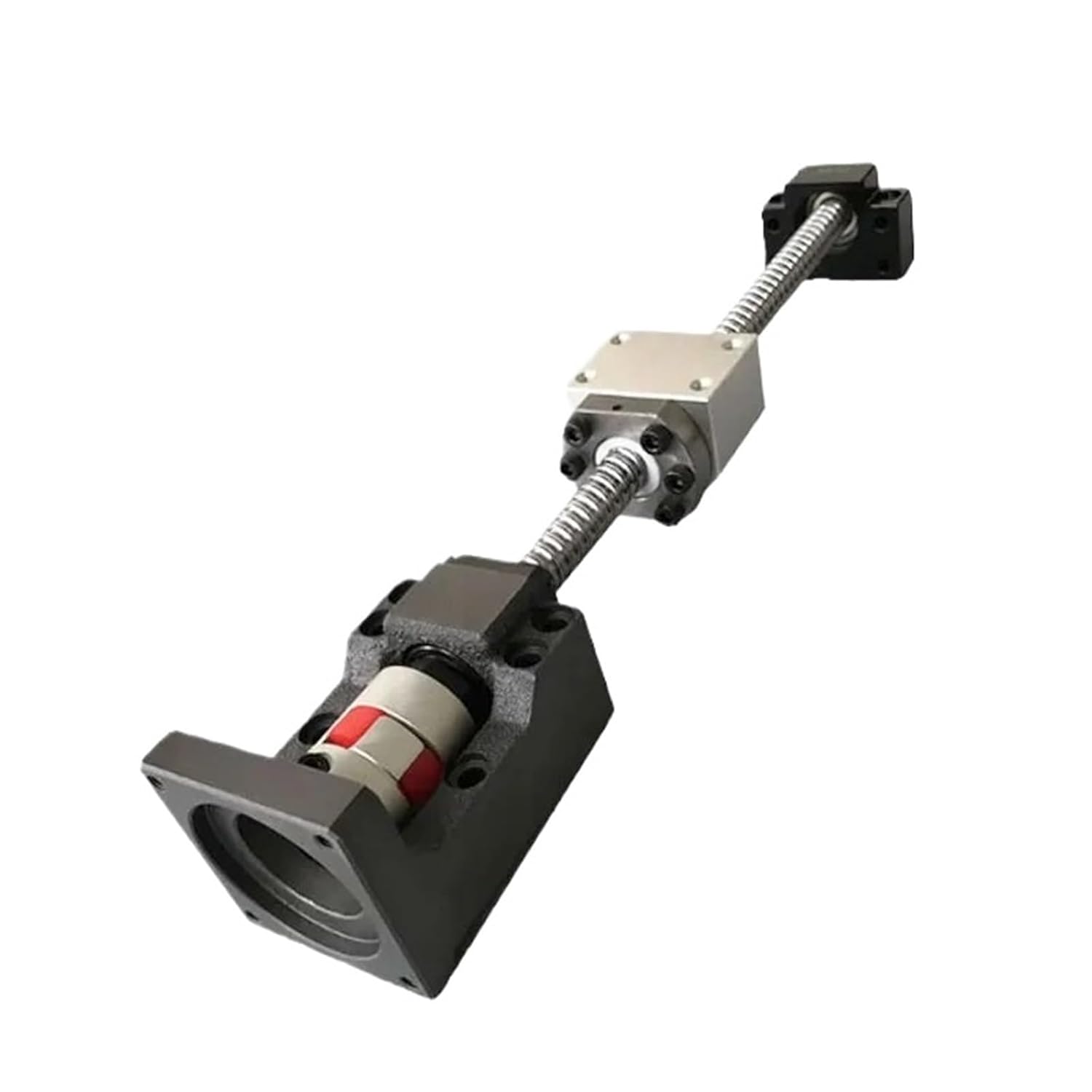

Metal Ball Screw nut end Processing 200-1000mm SFU2510 Ball Screw Ball Screw Nut with HM20-86 C7 Motor Bracket(950mm)

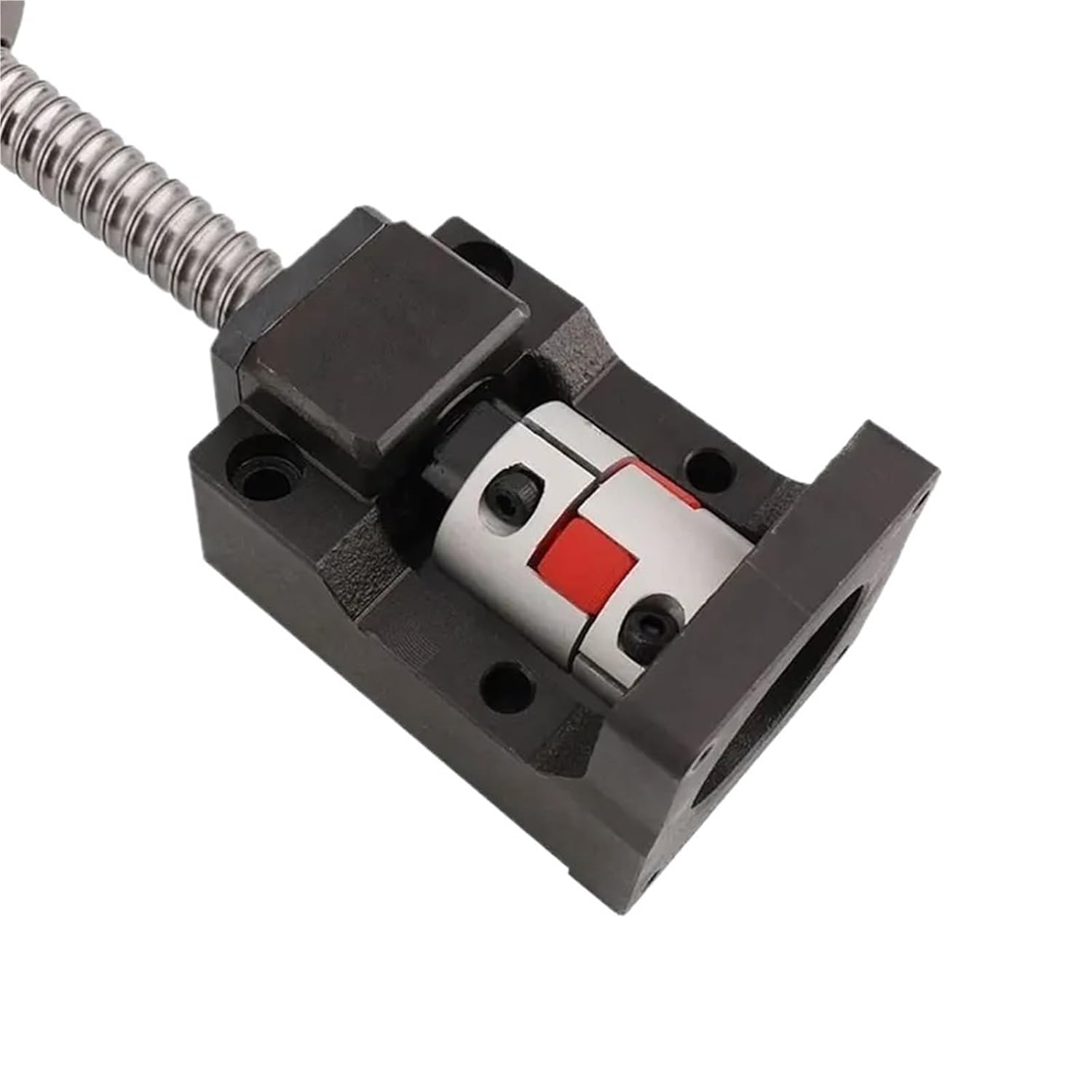

1. Low friction, long service life; low operating noise.2. Carbon steel and aluminum alloy, minimum starting torque, capable of high speed and micro feed.3. Ball screws are widely used in CNC machine tools, industrial and other transmission equipment.Specifications:Model: SFU2510Guide rail width or diameter: 25mmLead: 10mmDescription:High transmission efficiency, high positioning accuracy, good positioning accuracy repeatability, long life, high rigidity, good transmission reversibility, bright surface, high matching accuracy, easy and light slider movement. Made of high-quality steel, wear-resistant, can meet high load capacity requirements. Easy to assemble aluminum support rails with pre-drilled holes for easy installation.Packing list:1pcs SFU2510 ball screw with nut, BKBF end processing + any length1pcs DSG25H nut housing1pcs HM20-86 cast iron (for Nema34 motor C7)1pcs BF201pcs D40L65-14*17mm coupling

• 1. Ball screws are the most common transmission components used as transmission elements in machinery and precision machinery.
• 2. Ball screws are made of carbon steel, which is more wear-resistant, greatly extending the service life of ball screws, and the life span is increased several times.
• 3. Less heat generation, reduced required drive power, and high axial force per unit ball screw volume.
• 1. Stable performance, strong performance, smooth rotation.
• 2. Not easy to deform and wear, high precision and low noise.
• 3. Effective dust prevention, lubrication, precise processing size.
• 4. Can easily preload the rotational change and linear motion.
